Marka
Marka:

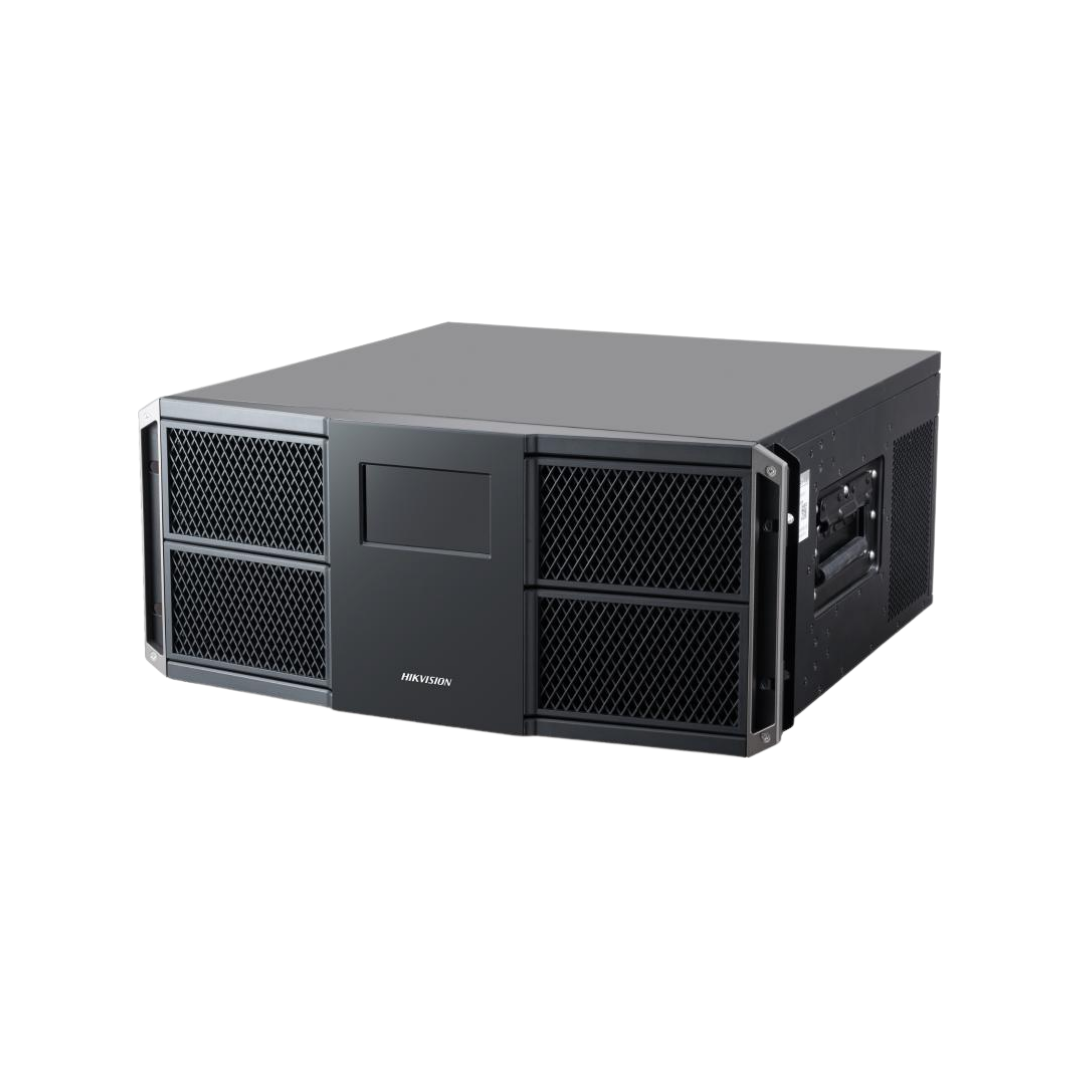

Hikvision
Model
Model:
DS-C30S-S11
Çalışma Koşulları
Çalışma Sıcaklığı:
0 °C ~ 50 °C
Çalışma Nem Aralığı:
10 ~ 90%
Arayüz Özellikleri
USB Interface No.:
2 × USB 2.0
Ekran Tipi:
4.3 inch non-touch screen, length × width: 105.42 mm × 67.07 mm (4.15 inch × 2.64 inch), resolution: 480 × 272
Serial Interface:
2 × Console port (RJ-45) + 1 × RS-485/RS-232 multiplex interface (RJ-45, baud rate:115200, valid data bit: 8 bit)
Video Wall Özellikleri
Video Walls:
8
Video Wall Scale:
40
Split Window:
Supported
Open Windows:
16
Input Source Copy Capability:
Each output board can duplicate eight 2K images from the input source but the LED controller board does not have copy capability.
Window Division per Output Port:
1, 4, 6, 8, 9, 16
Layers Per Port:
8 × 1080p layers or 4 × 4K layers
Layers per Device:
512 (fully installed with the output boards)
Scenes:
128
Scene Auto-Switch Delay:
400 ms
Plans:
128
Live View Resolution:
16-channel D1 or 32-channel CIF; 4-channel D1 or 16-channel CIF when previewing the image of a video wall on a client with all service boards installed in the device
UHD Fusions:
≤ 16
Background Image:
Total: 8; One background image on each video wall. Resolution: 16382 × 8192 Format: JGP, JPEG
Subtitles:
Total: ≤ 12; Single video wall: ≤ 3
Input OSD:
Supported
Input Image Clipping:
Supported 200 pixel points on top, bottom, left, and right.
Local Signal Source Decoding Delay:
50 ms
Network Signal Source Decoding Delay:
200 ms
Display Video Wall Image:
Supported
